Ultra-Grit Rival XPLR AXS

  1. £3,099

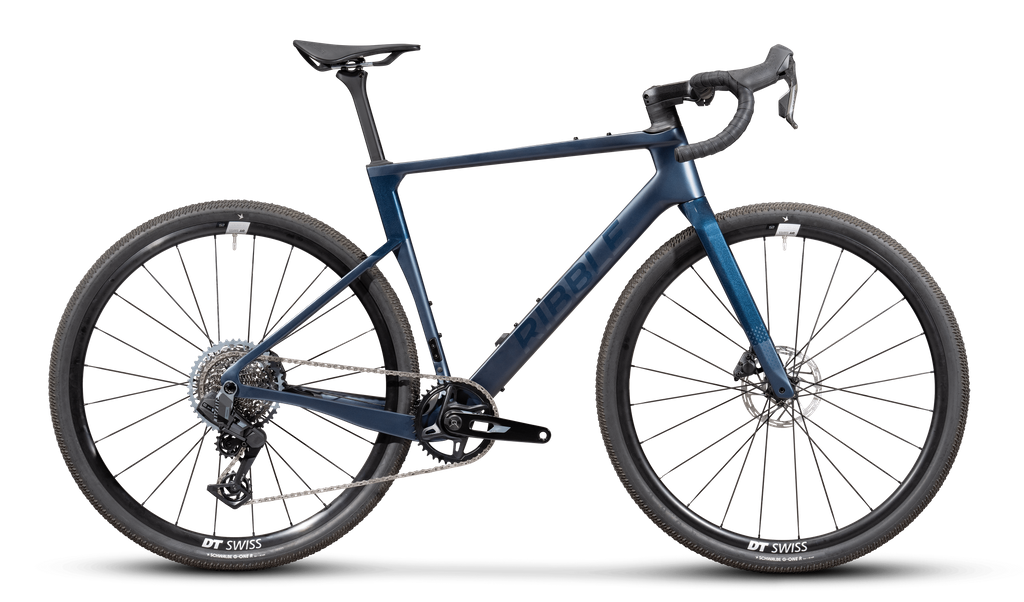

The ULTRA GRIT is Ribble’s fastest gravel bike—developed and proven by our pro gravel team, the Ribble Outliers, in the chaos of the world’s toughest off-road races, from Unbound to The Traka to The Dirty Reiver. Weighing just 8.9 kg, it's built for riders who thrive on the unknown. This durable build pairs a lightweight, advanced carbon frameset with SRAM’s Rival XPLR AXS wireless groupset. DT Swiss alloy wheels, versatile 45mm Schwalbe G-One R tyres, and a Selle Italia Novus Boost saddle complete this race-worthy package. The Ribble ULTRA-GRIT is also available with the optional RockShox Rudy Ultimate suspension fork upgrade, delivering enhanced comfort, control, and confidence when the gravel turns rough and the trails get technical.
Choose Your Size
Product code: BGRAVSLRRIXPE1

...And Many Ways To Pay...

Description

The ULTRA-GRIT is Ribble’s fastest gravel bike—developed and proven by our pro gravel team, the Ribble Outliers, in the chaos of the world’s toughest off-road races, from Unbound to The Traka to The Dirty Reiver. Weighing just 8.9 kg, it's built for riders who thrive on the unknown. This durable build pairs a lightweight, advanced carbon frameset with SRAM’s Rival XPLR AXS wireless groupset. DT Swiss alloy wheels, versatile 45mm Schwalbe G-One R tyres, and a Selle Italia Novus Boost saddle complete this race-worthy package.

Groupset

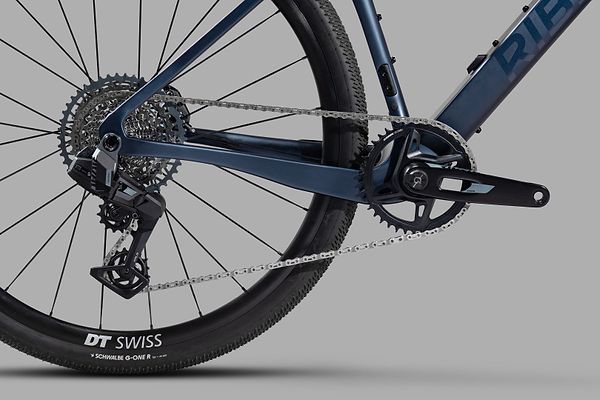

Rival XPLR AXS is built for riders who go deep into the wild and push hard every mile. Its tough, lightweight design delivers precise 13-speed wireless shifting across a 10-46T range—so you're always in the right gear, whether grinding up loose climbs or sprinting to the line. The Full Mount rear derailleur shrugs off abuse, while refined braking keeps you in control on technical descents. With a spindle-based power meter seamlessly integrated into the redesigned alloy crankset, you get the reliable data you need to ride smarter, train harder, and explore further—without adding bulk or complexity.

Groupset

Wheelset

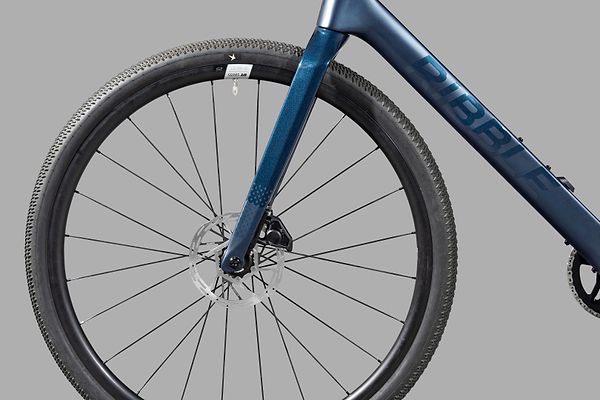

Boasting a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident control and comfort across rough and unpredictable gravel terrain. Paired with 45 mm Schwalbe G-One R Performance tyres, it strikes the perfect balance of speed, grip, and stability—ideal for riders who push the boundaries across varied and demanding surfaces.

Wheelset

Handlebars

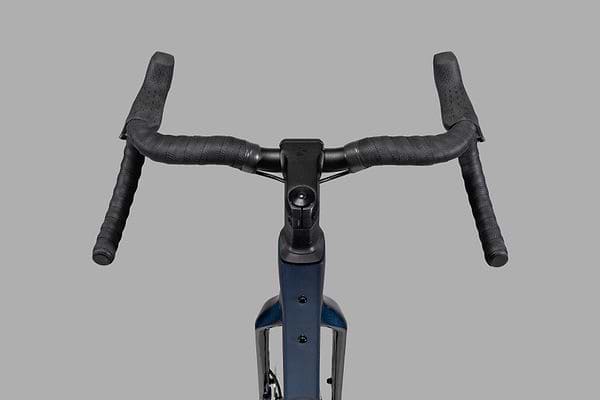

Built to take on the rough stuff, the Ribble Gravel Riser handlebars bring comfort, control, and versatility to every ride. A 20 mm rise gives you more hand positions and extra space for running a bar bag—perfect for long hauls and bikepacking missions. The flared drops widen your stance for rock-solid stability when bombing descents or picking through technical terrain. Wrapped in plush bar tape and paired with a semi-integrated RS-2 alloy stem, this setup is ready to tackle whatever the trail throws your way.

Handlebars

SADDLE

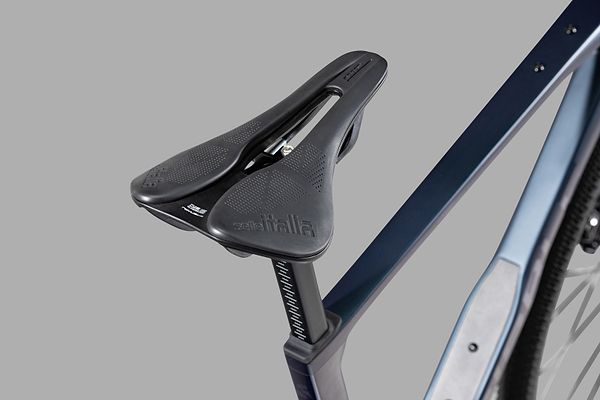

Stay stable and comfortable over rough terrain—our integrated seat post clamp, combined with a proprietary D-shaped carbon seat post and the Selle Novus Boost Evo saddle, delivers excellent rear-end compliance and effectively reduces trail chatter for all-day comfort.

SADDLE

Suspension Fork Upgrade

When the gravel turns rough and the terrain gets technical, the RockShox Rudy Ultimate fork steps in to smooth out the ride. Available as an upgrade on the Ribble ULTRA-GRIT, this premium suspension fork is purpose-built for gravel racing—offering up to 30mm of travel for improved comfort, control, and confidence. Whether you're carving through gravel or hammering down technical descents, Rudy’s refined damping and lightweight design help you stay fast, focused, and in total command.

Suspension Fork Upgrade

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle (mm)70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre430430430430430
FC - Front Centre605610626637648
Reach386394404410417
Stack526545562588607
Wheelbase10251031104810581070
Integrated Bar Default (mm)380/430 x 80380/430 x 80400/450 x 90400/450 x 90420/470 x 100
Alloy Riser Bar Default (mm)380/473380/473400/494400/494420/513
RS-2 Stem Default70809090100
Min. Saddle Height620640710730740
Max. Saddle Height700720790810830

FAQ's

If you're between sizes on the ULTRA-GRIT, we generally recommend choosing the smaller option. It's easier to fine-tune the fit of a smaller frame by raising the seat post or using a longer stem, whereas a larger frame leaves much less room for adjustment.

Weight varies by build and fork type. Based on a medium size:

  • Apex XPLR AXS: 9.0 kg (carbon forks) / 9.7 kg (RockShox Rudy Ultimate)
  • Rival XPLR AXS: 8.9 kg (carbon forks) / 9.6 kg (RockShox Rudy Ultimate)
  • Force XPLR AXS: 8.3 kg (carbon forks) / 9.0 kg (RockShox Rudy Ultimate)
  • Red XPLR AXS: 8.0 kg (carbon forks) / 8.7 kg (RockShox Rudy Ultimate)
  • Outliers Edition: 8.0 kg (carbon forks) / 8.7 kg (RockShox Rudy Ultimate)

The ULTRA-GRIT frame weighs just 890 g in a medium size with raw finish.

Like all Ribble bikes, the ULTRA-GRIT is covered by a lifetime warranty on frame and forks for the original purchaser. This includes any manufacturing defects in materials or workmanship. The standard manufacturer's warranty applies to all other components including 3rd party suspension forks.

Yes, the ULTRA-GRIT frameset is UCI-approved and has been raced extensively by our pro gravel team the Outliers.

Yes. The ULTRA-GRIT is available with the optional RockShox Rudy suspension fork. This upgrade improves comfort and control on rougher gravel trails, helping you stay fast and confident when the terrain gets technical.

Yes. The ULTRA-GRIT features enhanced cable integration for a clean, cable-free look. Cables are hidden from view, protected from the elements and shielded from drag.

The ULTRA-GRIT comes equipped with fast, grippy and versatile 45 mm gravel tyres, with frame clearance for tyres up to 50 mm wide. When mudguards are fitted, maximum clearance is reduced to around 45 mm, depending on tyre brand and tread. The fork can also accept a 29 x 2.1" (700 x 53c) mountain bike tyre.

Yes. The ULTRA-GRIT can be fitted with a rear pannier rack using our adaptor kit, providing a practical way to carry extra gear (kit sold separately).

Yes. The ULTRA-GRIT includes a removable bridge to allow easy mudguard fitting for improved wet weather protection (kit sold separately).

The ULTRA-GRIT is compatible with a 68 mm BSA threaded bottom bracket. BSA threaded bottom brackets offer advantages over press-fit designs, particularly in terms of ease of installation, maintenance and reduced creaking. The threaded design provides a more robust connection, and the standardised threads make it simpler to install and remove.

The ULTRA-GRIT features a 1.5" integrated headset and R457B 52 x 42 x 7 mm 45° x 45° headset bearings top and bottom.

The ULTRA-GRIT features a D-shaped carbon seat post with an integrated wedge clamp, designed for compatibility with carbon-railed saddles. XS–SM frames are equipped with a 280 mm post, while M–XL frames come with a 330 mm post.

The ULTRA-GRIT features two bottle cage mounts with one on the seat tube and one on the downtube. Both are positioned to work seamlessly with Ribble aero bottle cages for optimal aerodynamic performance.

The ULTRA-GRIT includes extra luggage mounts on the top tube and underneath the downtube.

The ULTRA-GRIT features a 12 mm x 123 mm x 1.5 mm front and a 12 mm x 174 mm x 1.0 mm rear thru axle.

Yes. While the ULTRA-GRIT comes with a 1x drivetrain, it can also accommodate a braze-on front derailleur using the supplied hanger and 2x gravel chainsets (31T/48T min/max).

The ULTRA-GRIT uses SRAM’s UDH (Universal Derailleur Hanger) system, standardising hanger design across bikes. That means no more hunting for a frame-specific hanger with just one simple, universal solution.

The ULTRA-GRIT has a maximum recommended system weight of 120 kg, including bike, rider and luggage.

No. The ULTRA-GRIT does not come with pedals as standard so you can choose the best option for your riding style. You can add your preferred set during the bike configuration process.
