• New

ALLGRIT AL Apex XPLR

  1. £1,699
The ALLGRIT AL is built for versatility and comfort. From daily detours to cross-country epics, it’s ready to carry you and your gear wherever you need to go. Weighing just 10.3 kg, it pairs our lightweight 7005 Aluminium frame with a rugged, wide-range SRAM Apex XPLR drivetrain, durable DT Swiss G1800 alloy wheels, versatile 45 mm Schwalbe G-One R performance tyres, and an adventure-ready Selle Italia Novus Boost saddle. The Ribble ALLGRIT AL is also available with the optional RockShox Rudy Ultimate suspension fork upgrade, delivering enhanced comfort, control, and confidence when the gravel turns rough and the trails get technical.
Choose Your Size
Product code: BGRAVALG2APXP

...And Many Ways To Pay...

Description

The ALLGRIT AL is built for versatility and comfort. From daily detours to cross-country epics, it’s ready to carry you and your gear wherever you need to go. Weighing just 10.3 kg, it pairs our lightweight 7005 Aluminium frame with a rugged, wide-range SRAM Apex XPLR drivetrain, durable DT Swiss G1800 alloy wheels, versatile 45 mm Schwalbe G-One R Performance tyres, and an adventure-ready Selle Italia Novus Boost saddle.

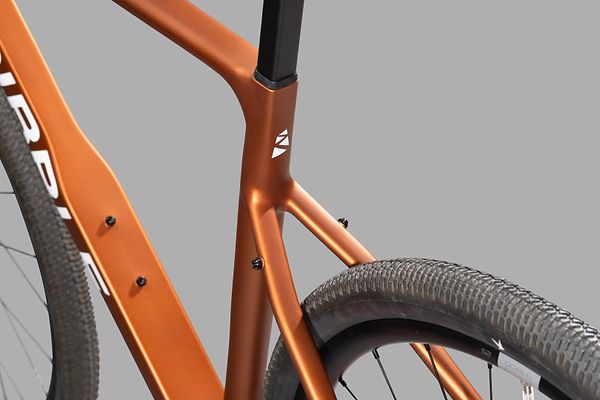

Frameset

Crafted from lightweight 7005 aluminium, this frameset delivers an ideal combination of strength, responsiveness, and low weight. Its hydroformed tube profiles are carefully shaped for maximum aerodynamic efficiency, ensuring minimal drag and maximum speed. Full internal cable integration and seamless weld technology contribute to a clean, refined look that rivals the sleek aesthetic of high-end carbon frames. The result is a frameset that performs as impressively as it looks—fast, smooth, and uncompromising in style.

Frameset

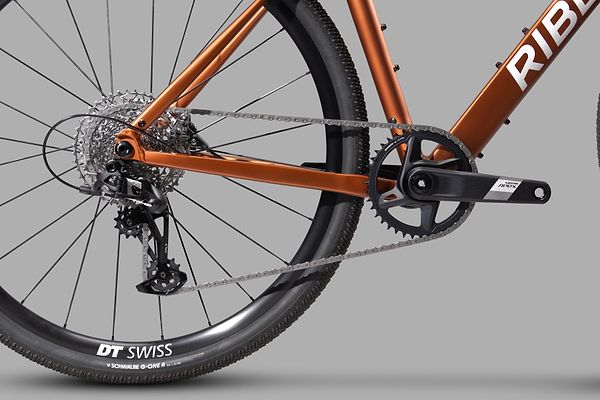

Groupset

When you want your bike to do everything, you need the gears to match. Apex XPLR hits the sweet spot, offering smooth jumps over a big gear range, with the added security and simplicity of a 1x drivetrain and the quiet confidence of hydraulic braking. Rapid and reliable, the wide-range gearing gives you the freedom to go full-gas on gravel, bike pack into the unknown or enjoy a casual cruise.

Groupset

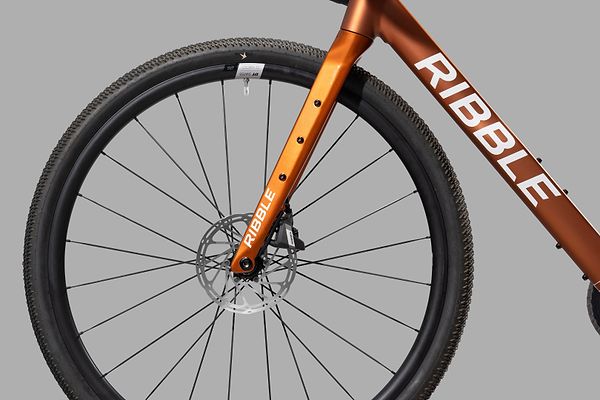

Wheelset

Boasting a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident control and comfort across rough and unpredictable gravel terrain. Paired with 45 mm Schwalbe G-One R Performance tyres, it strikes the perfect balance of speed, grip, and stability—ideal for riders who push the boundaries across varied and demanding surfaces.

Wheelset

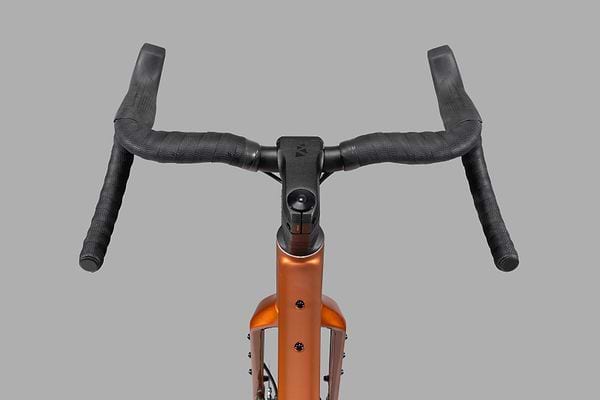

Handlebars

Built to take on the rough stuff, the Ribble Gravel Riser handlebars bring comfort, control, and versatility to every ride. A 20 mm rise gives you more hand positions and extra space for running a bar bag—perfect for long hauls and bikepacking missions. The flared drops widen your stance for rock-solid stability when bombing descents or picking through technical terrain. Wrapped in plush bar tape and paired with a matching alloy stem, this setup is ready to tackle whatever the trail throws your way.

Handlebars

Saddle

Remain stable and comfortable over rough terrain—the integrated seat post clamp, twinned with our proprietary D-shaped alloy seat post and Selle Novus Boost Evo saddle, delivers exceptional rear-end comfort that's hard to beat.

Saddle

Suspension Fork Upgrade

When the gravel turns rough and the terrain gets technical, the RockShox Rudy Ultimate fork steps in to smooth out the ride. Available as an upgrade on the Ribble ALLGRIT AL, this premium suspension fork is purpose-built for gravel racing—offering up to 30mm of travel for improved comfort, control, and confidence. Whether you're carving through gravel or hammering down technical descents, Rudy’s refined damping and lightweight design help you stay fast, focused, and in total command.

Suspension Fork Upgrade

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
Wheelbase (mm)10301036105210611075
Handlebar Default (mm)380/473380/473400/494400/494420/513
Stem Default (mm)70809090100
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830
Crank Length (mm)165170170172.5172.5

FAQ's

If you're between sizes on the ALLGRIT AL, we recommend choosing the smaller frame. It’s easier to adjust the fit by raising the seat post or using a longer stem, while a larger frame limits fine-tuning options.

Weight varies by build and fork type on the ALLGRIT AL. For a medium size: Apex XPLR AXS weighs 10.2 kg (carbon forks) or 11.0 kg (RockShox Judy suspension), and Apex XPLR is 10.3 kg (carbon forks) or 10.9 kg (RockShox Judy). The frame alone weighs 1,700 g.

The ALLGRIT AL includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.

Yes, the ALLGRIT AL offers an optional RockShox Judy suspension fork upgrade to improve comfort and control on rough gravel trails.

The ALLGRIT AL features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.

The ALLGRIT AL fits 45 mm gravel tyres as standard with clearance for tyres up to 50 mm wide. Mudguards reduce clearance to about 45 mm. The front fork accepts a 29 x 2.1" (700 x 53c) mountain bike tyre.

Yes, the ALLGRIT AL can be fitted with a rear pannier rack using an adaptor kit for added cargo capacity (rack sold separately).

A removable bridge on the ALLGRIT AL allows easy fitting of mudguards to improve wet weather protection (mudguards sold separately).

The ALLGRIT AL frame accepts an 85.5 mm T47 threaded bottom bracket for durability and ease of maintenance.

The ALLGRIT AL features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.

The ALLGRIT AL comes with a proprietary 350 mm D-shaped alloy seat post featuring a 10 mm setback, compatible with carbon and alloy saddle rails.

The ALLGRIT AL includes two bottle cage mounts on the seat tube and downtube compatible with Ribble aero cages.

Extra luggage mounts on the ALLGRIT AL are located on the top tube, underside of the downtube, and carryall mounts on the front forks.

The ALLGRIT AL uses 12 mm x 123 mm x 1.5 mm front and 12 mm x 174 mm x 1.0 mm rear thru-axles for secure wheel attachment.

While equipped with a 1x drivetrain, the ALLGRIT AL supports a 34.9 mm front derailleur and 2x gravel chainsets (31T/48T or 30T/46T).

The ALLGRIT AL uses SRAM’s UDH (Universal Derailleur Hanger) system for universal hanger compatibility and easy replacement.

The maximum recommended system weight for the ALLGRIT AL is 120 kg, including bike, rider, and luggage.

The ALLGRIT AL is designed to accommodate the latest flat-mount disc brakes for reliable stopping power.

No pedals are included with the ALLGRIT AL, allowing you to choose the best pedals for your riding style during bike configuration.
